Box build assembly explained: from bare PCB to finished product

On 29 July 2026, the Global Electronics Association released IPC-A-630A, a standard that didn’t exist in its current form for thirteen years. The document it replaces, from 2013, covered exactly three things under the heading “Electronic Enclosure Assembly”: hardware torque, electrical bonding, and rivets. Twenty-four of its thirty figures were illustrations of riveting. The new standard’s scope is unrecognisably wider, covering sheet metal processing, threaded inserts, heatsinks, cable routing, strain relief, shield termination, and connector damage.

The reason that gap mattered enough to close is worth sitting with for a moment: box build assembly has quietly become where a growing share of EMS value actually sits, and until this year, it didn’t have its own acceptance standard the way board-level assembly and cable harnesses have had for years. Here’s what box build actually involves, stage by stage, and what changed.

What box build assembly actually means

A finished PCB assembly, tested and verified, is not a finished product. It’s a component. Box build assembly is the work that turns that board into something a customer can actually use: fitted into an enclosure, wired to whatever it needs to connect to, loaded with firmware, and tested as a complete system rather than as an isolated board.

Board-level assembly is governed by IPC-A-610. Cable and wire harness work is governed by IPC/WHMA-A-620. Until this year, the enclosure-and-system-integration layer sitting on top of both had a standard that hadn’t meaningfully changed since 2013, even as the actual work it was meant to cover grew far more complex.

The stages of a box build, in order

Design review and DFM

Before assembly starts, the mechanical and electrical design get reviewed together: does the board actually fit the enclosure with correct clearances, are connector positions accessible once everything is closed up, do thermal paths make sense. Catching a mechanical clash here costs an email. Catching it after tooling is committed costs a redesign.

PCBA installation into the enclosure

The tested board is mounted into its housing using alignment pins, stepped standoffs, or tooling holes designed to make the board and enclosure mate the same way every time. This stage matters more than it sounds: a board that isn’t seated correctly stresses solder joints over time even if it passed every test as a standalone assembly.

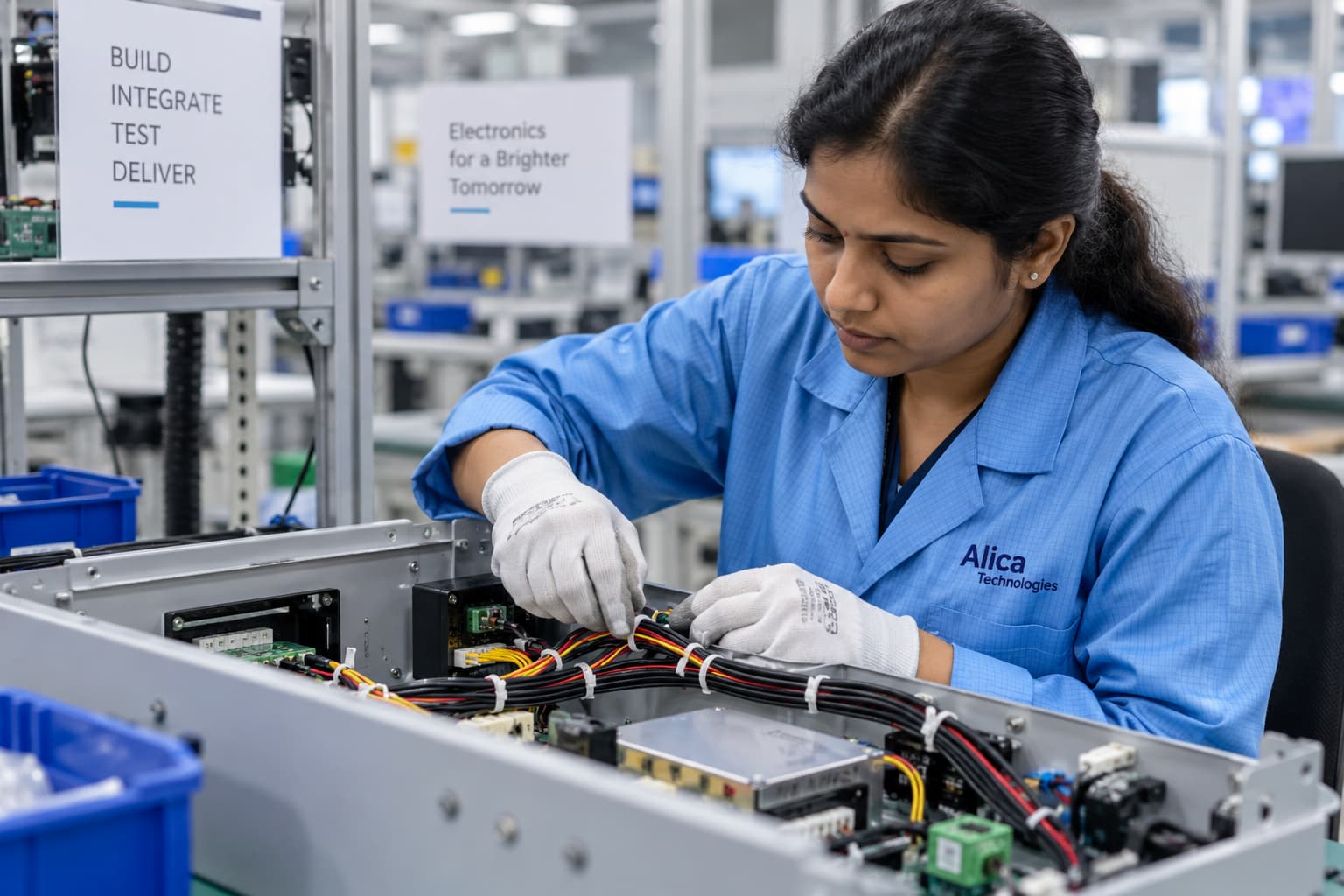

Cable and harness installation

Wiring gets routed, terminated, and secured according to IPC/WHMA-A-620 criteria. Poor routing here isn’t just a workmanship issue, it’s a serviceability one: badly routed cabling makes future repair or rework significantly harder.

Mechanical assembly and hardware

Fasteners, brackets, and hardware go in at specified torque values. This sounds like a minor detail until you consider the failure modes on either side of it: an under-torqued fastener works loose in the field, an over-torqued one strips threads or cracks a plastic enclosure.

Firmware and software loading

Many products need software configuration before they leave the building. This stage confirms the unit operates according to design intent, not just that it powers on.

System-level functional testing

This is where the completed unit gets tested as a customer would actually use it, not as a bare board on a test fixture. A board that passed every board-level test can still fail here if an enclosure ground path, a cable connection, or a mechanical interference wasn’t accounted for.

Final inspection, labelling and packaging

Serial numbers, compliance markings, and regulatory labels go on, and the unit is packaged with documentation and assembly records for full traceability.

Why this needed its own standard

A useful way to think about IPC-A-630A: it reframed the subject from the enclosure itself to the completed assembly as a single inspectable article. The old standard asked whether a box was assembled correctly. The new one asks whether the electronics-in-the-box, as a complete system, meets defined acceptance criteria, using the same three-class structure (Class 1, 2, 3) that IPC-A-610 already uses for board-level work. That consistency matters practically: a customer specifying Class 3 for a board can now specify Class 3 for the box build around it, using a standard built for that purpose rather than one written when riveting was the main concern.

How this differs from a general turnkey scope

We’ve written before about what turnkey electronics manufacturing covers beyond the board, and box build sits inside that broader scope as one specific, standards-governed piece of it. The distinction worth holding onto: turnkey describes who’s responsible for the work (one vendor, one contract). Box build describes what the work actually is, and now, under IPC-A-630A, what standard it’s measured against.

Where Alica Technologies fits

Alica Technologies handles box build and final assembly as part of our turnkey project delivery from Ahmedabad, scoped against the product class a given build actually requires rather than defaulting quietly to the lowest tier. Component sourcing, board assembly, and system-level integration run through the same team, which matters specifically at the handoff points this article walks through: PCBA-to-enclosure fit, cable routing, and final functional test are exactly where responsibility gaps between separate vendors tend to surface as defects later.

Talk to us about your box build requirement

Frequently asked questions

What’s the difference between PCB assembly and box build assembly?

PCB assembly produces a tested, populated circuit board. Box build assembly takes that board and integrates it into a complete product: enclosure, cabling, hardware, firmware, and system-level testing.

What is IPC-A-630A?

IPC-A-630A, released in July 2026, is the current standard for acceptance criteria of complete electronic box assemblies. It replaced a 2013 edition that covered a much narrower scope, mainly hardware torque and enclosure rivets.

Does box build assembly need a different quality standard than PCB assembly?

Yes. Board-level work is governed by IPC-A-610, cable and harness work by IPC/WHMA-A-620, and complete box assemblies now by IPC-A-630A. A full box build touches all three.

What class of box build assembly does my product need?

It depends on the application’s reliability requirements, similar to how IPC-A-610 classes work for boards. If a spec sheet or quote doesn’t state a class explicitly, it’s worth asking, since Class 2 is often the default without an explicit callout.

Can any PCB assembler also do box build?

Not necessarily. Box build requires mechanical assembly, cable harness capability, and system-level test infrastructure in addition to board assembly, which not every PCB-only shop has built out.
