Smart Meter PCB Assembly and Box Build in India: A guide for metering OEMs

A smart meter has to do something few electronics products are asked to do: measure accurately, communicate reliably, and keep doing both for years in a box on a wall, in heat, dust, and voltage swings, with no one checking on it. India’s push to modernise power distribution under the Revamped Distribution Sector Scheme (RDSS), along with grid modernisation programs in North America and Europe, has turned smart meter PCB assembly into a high-volume, high-stakes manufacturing job. Behind every deployed meter is an assembly line, and the quality of that line decides the field failure rate.

This guide is for hardware, procurement, and operations teams at metering and AMI companies. It explains what makes these boards demanding and what to ask of a manufacturing partner. Alica Technologies builds electronics from Ahmedabad for OEMs across India, North America, and Europe.

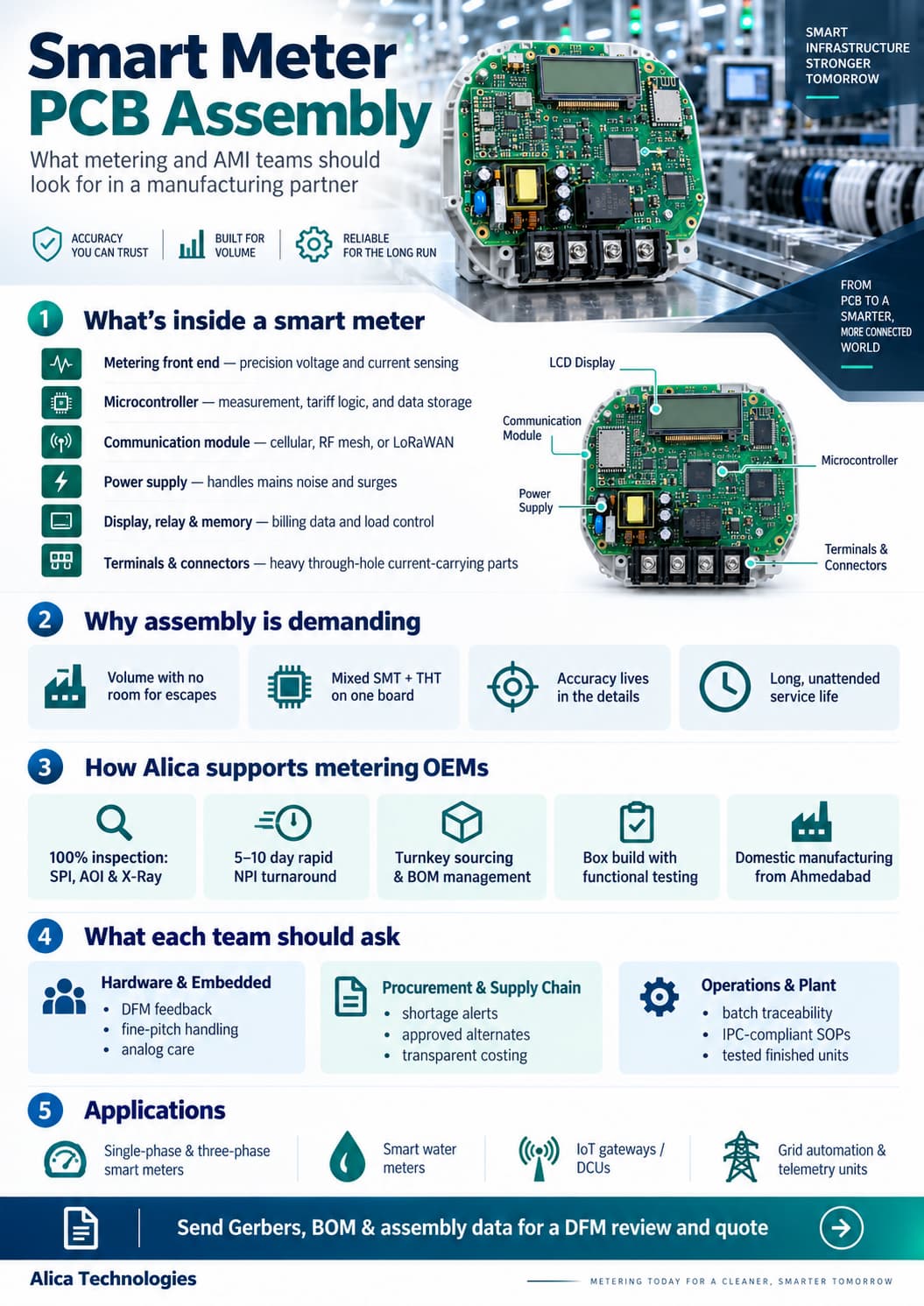

What is inside a smart meter

Whether it is a single-phase domestic meter, a three-phase industrial meter, or a smart water meter, the electronics usually fall into the same blocks:

• Metering front end: a metering IC or ADC with precision voltage and current sensing, where small resistor and solder variations can affect accuracy
• Microcontroller: runs measurement, tariff logic, data storage, and communication stacks
• Communication module: cellular, RF mesh, LoRaWAN, or similar, for the AMI link
• Power supply: a compact supply that has to tolerate mains noise and surges
• Display, relay, and memory: an LCD, an optional load-disconnect relay, and non-volatile storage for billing data
• Terminals and connectors: heavy through-hole parts that carry real current

OEMs commonly design to national and international metering and data-exchange standards, such as IS 16444 for smart meters in India and DLMS/COSEM for data exchange, plus individual utility specifications. Those requirements shape the board, but they are met in design and testing. The assembly line’s job is to build every unit exactly as designed, every time.

Why Smart Meter PCB Assembly is demanding

Volume with no room for escapes

A defect rate that looks small on a prototype run becomes thousands of failed units at utility scale. Every escaped defect is a truck roll, a replacement, and a penalty risk. Inspection therefore has to cover every board, not a sample.

Mixed technology on one board

Metering boards combine fine-pitch SMT parts (metering IC, MCU, comms module, passives) with through-hole terminals and heavy components. Running both in-house, with inspection between stages, avoids handoffs that create inconsistency. See our SMT and THT PCB assembly capability.

Accuracy lives in the details

Shunt, divider, and filter components around the measurement front end have to be placed and soldered consistently. Solder paste volume, placement accuracy, and reflow profile all show up later as measurement drift.

A long, unattended service life

Meters are installed for years. Marginal solder joints, contamination, and thermal cycling that are cosmetic issues on a short-life product become field failures here, which is why hidden-joint inspection and burn-in matter.

How Alica supports metering OEMs

What each decision-maker should ask

Hardware and Embedded Engineering

Ask for written DFM feedback before the first build, and how the partner treats fine-pitch parts and precision analog layouts. Our testing and inspection process combines SPI, AOI, and X-Ray so issues are caught where they are cheapest to fix.

Procurement and Supply Chain

Metering ICs, MCUs, and communication modules can be allocation-constrained. A turnkey project delivery model puts BOM management, shortage alerts, and alternates (always with your approval) with one partner. For a full vetting framework, read how to choose a smart meter contract manufacturer in India.

Operations and Plant Leadership

Ask for batch-level traceability, consistent SOPs, and a route to a tested, enclosed unit. Our end-to-end electronic manufacturing service covers box build with functional testing, so the unit you receive has been exercised before it reaches your calibration and dispatch stages.

Applications We Support Across Metering and Grid Electronics

• Single-phase and three-phase smart electricity meters
• Smart water meters and metering modules
• IoT gateways and data concentrator units
• Grid automation and telemetry units

These sit alongside our work in battery management system electronics and security and surveillance electronics, all built from one manufacturing base. You can see the sectors we cover on our industries page.

Frequently Asked Questions

What makes smart meter PCB assembly different from standard electronics assembly?

Smart meters combine precision analog measurement, a microcontroller, a communication module, and a power supply on one board. They are produced in volume and installed for years with little maintenance, so consistent solder quality and full inspection coverage matter more than on most consumer products.

Does Alica offer box build for smart meters?

Yes. Box build integration with functional testing is available alongside PCB assembly, so you can receive an assembled and tested unit rather than a bare board.

Can Alica source the components for a smart meter BOM?

Yes. Our turnkey service covers sourcing and full BOM management with a transparent cost breakdown. Alternate parts are proposed for your approval and never substituted silently.

Planning a smart meter or AMI hardware program?

Send your Gerbers, BOM, and assembly data through our contact page for a DFM review and quote, or review our manufacturing capabilities first.
